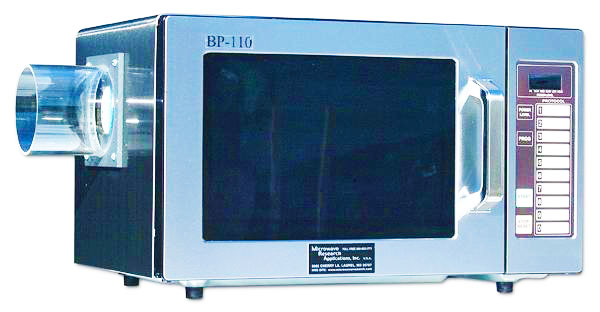

BP110 Laboratory Grade Microwave

A basic laboratory microwave from Microwave Research and Applications for staining microscope tissue samples, waste solids testing, moisture testing, chemical processing, agar heating and other laboratory processing.

The BP-110 is a laboratory grade microwave with time and power based controls much like a domestic microwave oven that many laboratories use every day. It produces up to 1,000 watts of microwave power, the most common power level of domestic microwaves sold today meaning you should be able to use your existing protocol. The microwave has a powered cavity ventilation system that can be connected into the house air handling system or to an approved laboratory air handling system.

Applications/users:
Suggested uses include staining of microscope samples, drying slides, preparation of agar, heating laboratory materials. This laboratory microwave is intended to replace the domestic microwave ovens often used in the laboratory. It has been used for solids testing (TSS and “cake” solids wastewater testing), moisture content testing and for sample preparation for chemical analysis.

 BP-110 features

• Operates just as a domestic microwave oven using time and power level
• 120 volt operation, 15 ampere – needs no special wiring (230 VAC 50 Hertz input available)
• Up to 1,000 watts of microwave power
• High volume cooling for long life
• 5 different power levels plus a hold feature
• Simple to use touch control pad
• Bottom feed microwave using mode stirrer technology for even heating
• Up to twenty multistage programs can be stored for your most popular protocol
• Powered cavity exhaust to remove fumes from the cavity
• Includes 8 feet of chemical resistant flexible duct to facilitate connection of exhaust system
• Includes 2 stainless steel clamps for ease of mounting the exhaust duct
• Includes adaptor to connect exhaust hose to the microwave
• Mode stirrer gives excellent uniform heating without the need of a breakable turntable common to domestic microwaves
• Cavity 330mm wide x 205mm tall x 330mm deep (13” x 8 1/16” x 13”)
• Compact microwave – uses minimal counter space
• Stainless steel cavity and cover for easy clean up, chemical resistance and long life
• Fully safety tested including microwave leakage
• Meets US FCC requirements and can be tested for Canadian CSA requirements.

Specifications (values nominal)

Electrical

Input power                                          120 Volts / 60 Hz. 15 amp dedicated circuit

(230 volt / 50 Hz available)

Physical

Outer dimensions                                 20 ½” w x 12 ¹/₈” h x 16” d (W/O handle and vent duct)

Cavity dimensions                               Cavity 330mm wide x 205mm tall x 330mm deep (13” x 8 1/16” x 13”)

Weight/shipping weight                      42 pounds / 49 pounds

Microwave

Frequency                                             2.45 GHz. – an ISM frequency

Cavity venting                               Powered cavity venting, optional intergraded power cavity exhaust unit

Microwave leakage                             Less than 5 mW/cm² at 5 cm meeting FCC/FDA CDRH requirements

Power levels (on-off cycling or pulsing):

High                       1,000 watts                                           Medium High                       775 watts

Medium                 500 watts                                              Medium Low                        360 watts

Low                        180 watts                                              Hold                                       No power
